°AirRay Cortical Electrodes

°AirRay Cortical Electrode – Quality for Clinical Diagnostics and Research

°AirRay Cortical Electrode is CorTec’s ECoG electrode for invasive neuromonitoring. It is designed for the recording and stimulation of brain activity from the cortical surface. Monitoring of electrical brain signals supports e.g. the localization of epileptogenic foci or brain mapping. The electrode may be used for a maximum of up to 29 days.

°AirRay Cortical Electrode – Soft, Thin, and Flexible Material Structure

Due to CorTec’s special laser manufacturing process, °AirRay Cortical Electrode is very soft, thin, and flexible and adjust well to the brain’s curvature. Additionally, °AirRay Cortical Electrode requires only a small number of electrode cables. A number of 64 electrode contacts, for instance, can be connected via only two cables.

°AirRay Cortical Electrode – Safety for the Patient

Health and well-being of the patient are of the utmost importance to us. Therefore, we greatly emphasize safe electrode design. °AirRay Cortical Electrodehas an even surface; individual electrode contacts are almost impalpable and safely interlock with the material to prevent their separation from the silicone.

°AirRay Cortical Electrode – Use in Clinical Practice

°AirRay Cortical Electrode has received market clearance from the Food and Drug Administration (FDA) in the USA for invasive neuromonitoring in the central nervous system. The product portfolio includes all possible contact arrangements from 1×4 to 8×8 electrode contacts.

°AirRay Cortical Electrode – Chose Your Design

In the following we list the designs that we offer as part of our standard catalogue.

°AirRay Cortical Electrode – Strip Electrodes

General Information:
• R-Indicator on the electrode to identify top and bottom sides.
• Product is intended for single use.
• Connectors for the connection cable are included.
• Product is supplied sterile.
• Contact diameter is 4 mm in total (contact opening 2.7 mm).

Strip Electrode | 1 x 8

The 8-Contact Strip in its classic design.

Strip Electrode | 1 x 6

The 6-Contact Strip in its classic design.

Strip Electrode | 1 x 4

The 4-Contact Strip in its classic design.

°AirRay Cortical Electrode – Grid Electrodes

Grid Electrode | 8 x 8

Soft and thin structures for increased flexibility and adaptability: 64 contacts.

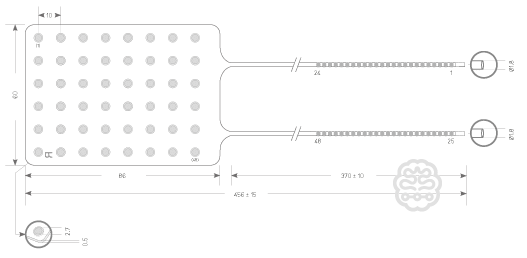

Grid Electrode | 6 x 8

Soft and thin structures for increased flexibility and adaptability: 48 contacts.

Grid Electrode | 4 x 8

Soft and thin structures for increased flexibility and adaptability: 32 contacts.

Grid Electrode | 4 x 5

Soft and thin structures for increased flexibility and adaptability: 20 contacts.

Grid Electrode | 4 x 4

Soft and thin structures for increased flexibility and adaptability: 16 contacts.

Grid Electrode | 2 x 8

Soft and thin structures for increased flexibility and adaptability: 16 contacts.

Grid Electrode | 2 x 6

Soft and thin structures for increased flexibility and adaptability: 12 contacts.

Grid Electrode | 2 x 5

Soft and thin structures for increased flexibility and adaptability: 10 contacts

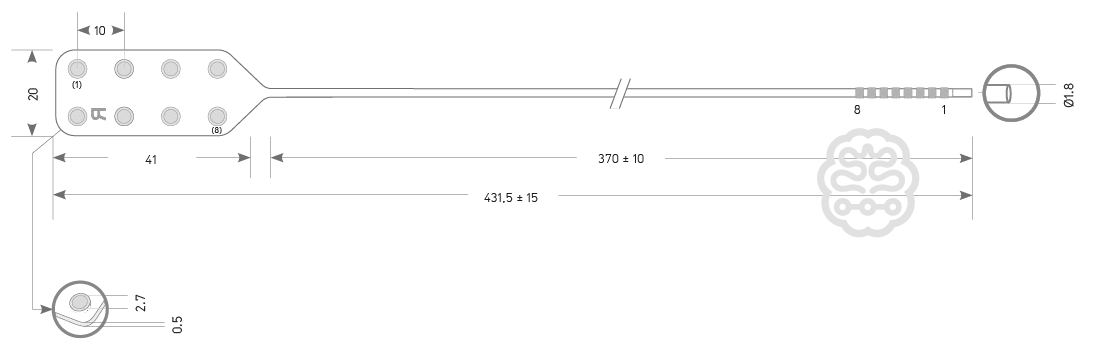

Grid Electrode | 2 x 4

Soft and thin structures for increased flexibility and adaptability: 8 contacts.

Connection System for °AirRay Cortical Electrodes

General Information:
• Connection system allows to connect °AirRay Cortical Electrodes to a neuromonitoring system
• Connection sizes with 8, 16, 24 and 32 contacts are available
• The Connection Cable can be ordered either as a Patient Cable Set consisting of Patient Side Cable, Color Rings and two Connector Blocks.
• Alternatively all components can be ordered separately.

Customizable °AirRay Electrodes for Clinical Application

Customizable cuff electrode for the use in clinical applications.

Customizable number of contacts
Customizable size of inner diameter and cuff length
